t-SNE met beelden

from datasets import load_dataset

UC_Merced = load_dataset("blanchon/UC_Merced")

# Explore the dataset structure
print("Dataset structure:")
print(UC_Merced)
print(f"\nNumber of training images: {len(UC_Merced['train'])}")
print(f"\nFeatures: {UC_Merced['train'].features}")
print(f"\nCategories: {UC_Merced['train'].features['label'].names}")

import matplotlib.pyplot as plt
import numpy as np

rng = np.random.default_rng(42)

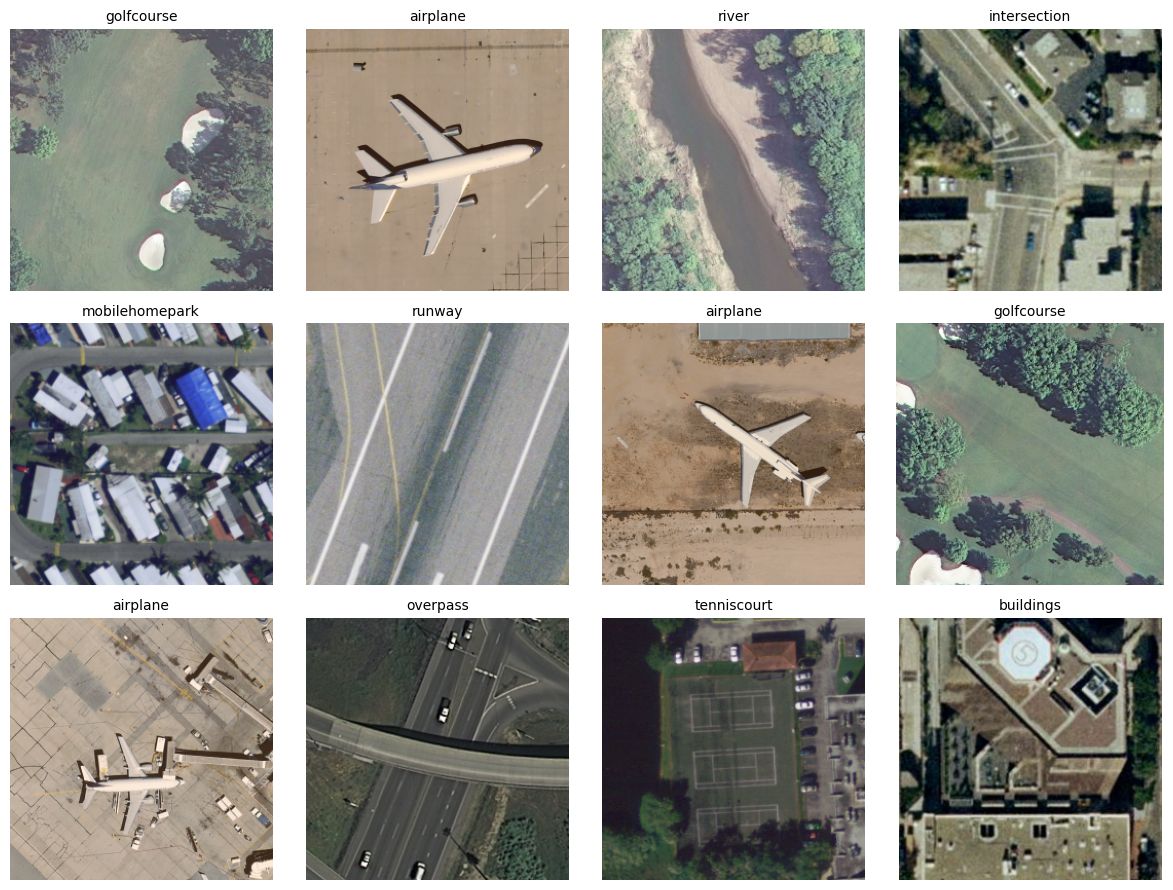

# Display a grid of sample images
fig, axes = plt.subplots(3, 4, figsize=(12, 9))
axes = axes.flatten()

# Sample 12 random images
sample_indices = rng.choice(len(UC_Merced["train"]), size=12, replace=False)

for idx, sample_idx in enumerate(sample_indices):
    sample = UC_Merced["train"][int(sample_idx)]
    axes[idx].imshow(sample["image"])
    label_name = UC_Merced["train"].features["label"].names[sample["label"]]
    axes[idx].set_title(f"{label_name}", fontsize=10)
    axes[idx].axis("off")

plt.tight_layout()
plt.show()

import torch
from torchvision import models, transforms

# Load pre-trained MobileNetV2 model
mobilenet = models.mobilenet_v2(pretrained=True)

# Remove the classifier layer to get embeddings
embedding_model = torch.nn.Sequential(*list(mobilenet.children())[:-1])
embedding_model.eval()

# Define image preprocessing
preprocess = transforms.Compose(
    [
        transforms.Resize(256),
        transforms.CenterCrop(224),
        transforms.ToTensor(),
        # ImageNet normalisation values (mean/std calculated over ~1.2M training images)
        transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
    ]
)

# Sample 1000 images (stratified by category for better representation)
n_samples = 1000
dataset = UC_Merced["train"]

# Get all categories
categories = dataset.features["label"].names
n_categories = len(categories)
samples_per_category = n_samples // n_categories

# Sample indices stratified by category
sampled_indices = []
sampled_labels = []

for label_idx in range(n_categories):
    # Get all indices for this category
    category_indices = [i for i in range(len(dataset)) if dataset[i]["label"] == label_idx]
    # Sample from this category
    n_to_sample = min(samples_per_category, len(category_indices))
    sampled = rng.choice(category_indices, size=n_to_sample, replace=False)
    sampled_indices.extend(sampled)
    sampled_labels.extend([label_idx] * n_to_sample)

# Adjust to exactly 100 if needed
sampled_indices = sampled_indices[:n_samples]
sampled_labels = sampled_labels[:n_samples]

print(f"Sampled {len(sampled_indices)} images")
print(f"Categories distribution: {np.bincount(sampled_labels)}")

# Generate embeddings for the sampled images
embeddings_list = []

print("Generating embeddings...")
with torch.no_grad():
    for idx in sampled_indices:
        # Get image
        image = dataset[int(idx)]["image"]

        # Preprocess
        input_tensor = preprocess(image).unsqueeze(0)

        # Get embedding (output is [batch, 1280, 7, 7])
        embedding = embedding_model(input_tensor)

        # Apply global average pooling to get [batch, 1280]
        embedding = embedding.mean(dim=[2, 3])

        # Convert to numpy and flatten
        embedding = embedding.squeeze().numpy()
        embeddings_list.append(embedding)

embeddings_array = np.array(embeddings_list)
print(f"Embeddings shape: {embeddings_array.shape}")
print(f"Labels shape: {len(sampled_labels)}")

from sklearn.manifold import TSNE

# Apply t-SNE
print("Applying t-SNE (this may take a moment)...")
tsne = TSNE(n_components=2, random_state=42, perplexity=30, max_iter=1000, verbose=1)
embeddings_2d = tsne.fit_transform(embeddings_array)

print(f"\nReduced embeddings shape: {embeddings_2d.shape}")
print(f"X range: [{embeddings_2d[:, 0].min():.2f}, {embeddings_2d[:, 0].max():.2f}]")
print(f"Y range: [{embeddings_2d[:, 1].min():.2f}, {embeddings_2d[:, 1].max():.2f}]")

import pandas as pd
import plotly.express as px

# Create a DataFrame for plotting
df = pd.DataFrame(
    {
        "x": embeddings_2d[:, 0],
        "y": embeddings_2d[:, 1],
        "label": [categories[label] for label in sampled_labels],
        "label_id": sampled_labels,
    }
)

# Create interactive scatter plot
fig = px.scatter(
    df,
    x="x",
    y="y",
    color="label",
    title="t-SNE Visualization of UC Merced Land Use Dataset",
    labels={"x": "t-SNE Component 1", "y": "t-SNE Component 2"},
    hover_data=["label"],
    width=900,
    height=700,
)

# Update layout for better appearance
fig.update_traces(marker={"size": 10, "line": {"width": 0.5, "color": "white"}})
fig.update_layout(
    font=dict(size=12),
    legend={
        "title": "Land Use Category",
        "yanchor": "top",
        "y": 0.99,
        "xanchor": "left",
        "x": 1.01,
    },
)

fig.show()

# Test different perplexity values
perplexity_values = [5, 15, 30, 50]
results = {}

print("Computing t-SNE with different perplexity values...")
for perp in perplexity_values:
    print(f"Perplexity = {perp}...", end=" ")
    tsne_temp = TSNE(n_components=2, random_state=42, perplexity=perp, max_iter=1000, verbose=0)
    embeddings_2d_temp = tsne_temp.fit_transform(embeddings_array)
    results[perp] = embeddings_2d_temp
    print("done")

print("All done!")

# Create subplots comparing different perplexity values
import plotly.graph_objects as go
from plotly.subplots import make_subplots

fig_perplexity = make_subplots(
    rows=2,
    cols=2,
    subplot_titles=[f"Perplexity = {p}" for p in perplexity_values],
    vertical_spacing=0.12,
    horizontal_spacing=0.08,
)

# Color mapping for categories
unique_labels = sorted(set(sampled_labels))
colors = px.colors.qualitative.Plotly + px.colors.qualitative.Dark24
color_map = {label: colors[i % len(colors)] for i, label in enumerate(unique_labels)}

positions = [(1, 1), (1, 2), (2, 1), (2, 2)]

for idx, (perp, pos) in enumerate(zip(perplexity_values, positions, strict=False)):
    embeddings_temp = results[perp]

    # Create scatter traces for each category
    for label_idx in unique_labels:
        mask = [l == label_idx for l in sampled_labels]
        indices = [i for i, m in enumerate(mask) if m]

        fig_perplexity.add_trace(
            go.Scatter(
                x=embeddings_temp[indices, 0],
                y=embeddings_temp[indices, 1],
                mode="markers",
                marker={
                    "size": 6,
                    "color": color_map[label_idx],
                    "line": {"width": 0.3, "color": "white"},
                },
                name=categories[label_idx],
                legendgroup=categories[label_idx],
                showlegend=(idx == 0),  # Only show legend for first subplot
                hovertemplate=f"{categories[label_idx]}<br>x: %{{x:.2f}}<br>y: %{{y:.2f}}<extra></extra>",
            ),
            row=pos[0],
            col=pos[1],
        )

fig_perplexity.update_xaxes(title_text="t-SNE 1", showticklabels=False)
fig_perplexity.update_yaxes(title_text="t-SNE 2", showticklabels=False)

fig_perplexity.update_layout(
    title_text="Effect of Perplexity on t-SNE Visualization",
    height=800,
    width=1000,
    font={"size": 11},
    legend={"yanchor": "top", "y": 0.98, "xanchor": "left", "x": 1.01, "font": {"size": 9}},
)

fig_perplexity.show()
